Expert Femoral Intramedullary Nail

Proximal Oblique Cut: Oblique cutting in proximal end prevent irritation to soft tissue.
5-Degree Angle: Medial-lateral angle of 5 degree allows insertion at the tip of the great trochanter.
Dual Locking Options: Two locking options for different fractures.
Double Thread Design: Locking screw designed with double lead thread for easier insertion.

Model:
1100-14
Brand:
Grandermed
Material:
Titanium Alloy
Diameter Range:
9 10 11 12mm
Length Range:
180 200 220 240 320 340 360 380 400 420 440mm
Anatomical Location:
Femur
OEM:
Avaliable
Certificate:
CE | ISO13485
PDF:
Intertan Nail.pdf


Availability:



Inquire

Product Description

Videos

Case Examples

Reference Products

FQA

Product Description

Expert Femoral Intramedullary Nail

The Expert Femoral Intramedullary Nail is a premium orthopedic implant featuring Multi-Planar Locking Technology for enhanced rotational stability. It is indicated for complex intertrochanteric/shaft fractures (AO 31-A1~3), osteoporotic fractures, and periprosthetic fractures.

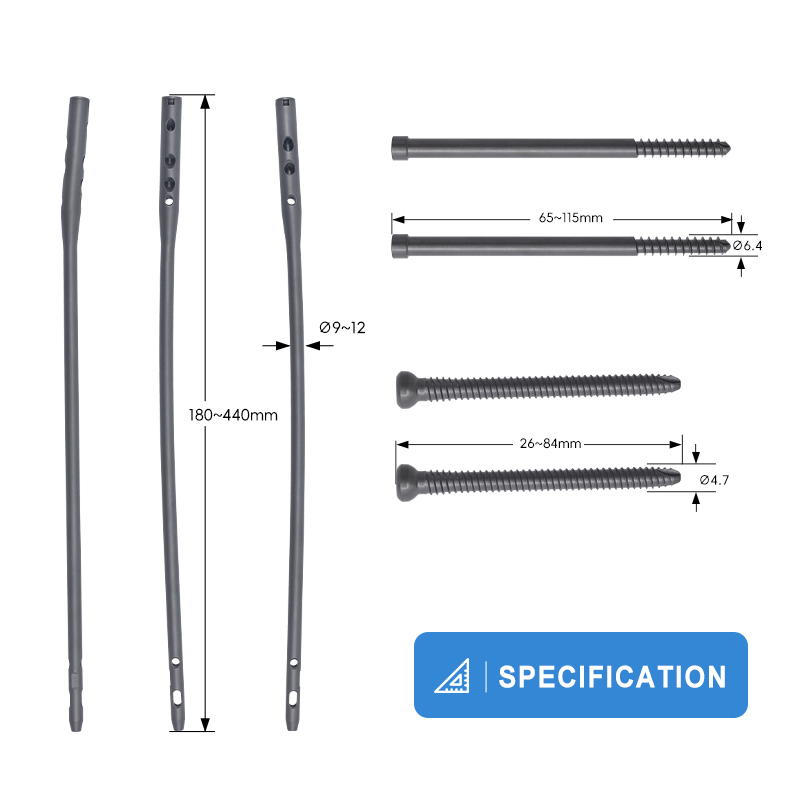

Main Nail

The main nail is the core component for femoral intramedullary fixation. Inserted into the femoral medullary canal, it stabilizes the fracture site and promotes fracture healing. It features multiple locking holes that work with locking screws to provide multi-plane stable fixation.

6.4mm Locking Screw (Cannulated)

This screw is inserted through the locking holes of the main nail to form a rigid connection, enhancing stability at the fracture site. It allows guide wires to pass through for precise placement.

4.7mm Locking Screw

Inserted through the locking holes of the main nail to form a rigid connection, it provides auxiliary fixation, especially in multi-point locking scenarios. It can be combined with 6.4mm screws to deliver versatile fixation solutions.

Expert Femoral Intramedullary Nail

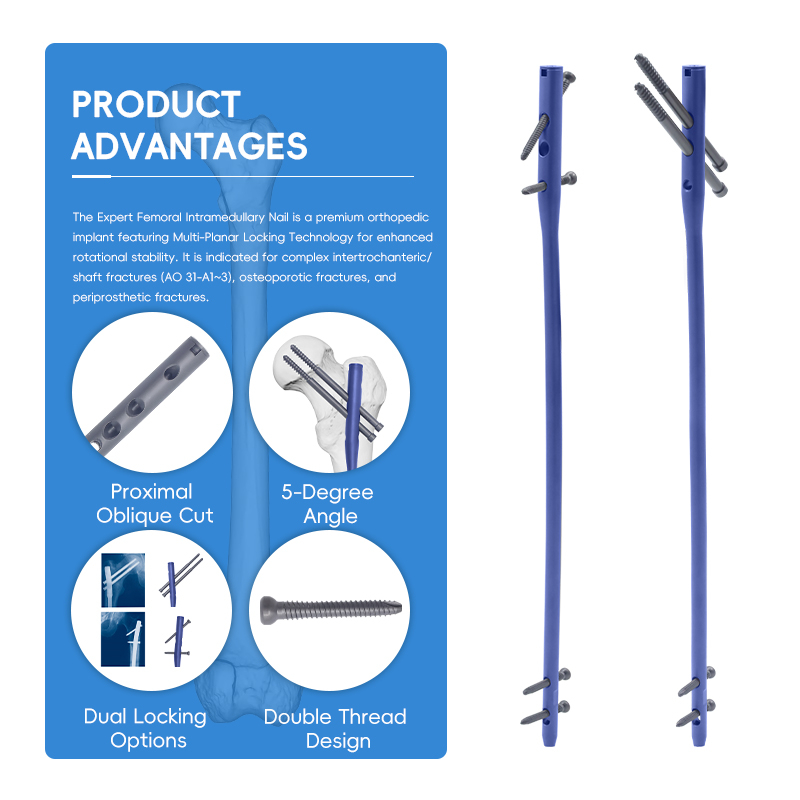

Product Hightlights

Expert Femoral Intramedullary Nail Highlights

Proximal Oblique Cut

Oblique cutting in proximal end prevent irritation to soft tissue.

5-Degree Angle

Medial-lateral angle of 5 degree allows insertion at the tip of the great trochanter.

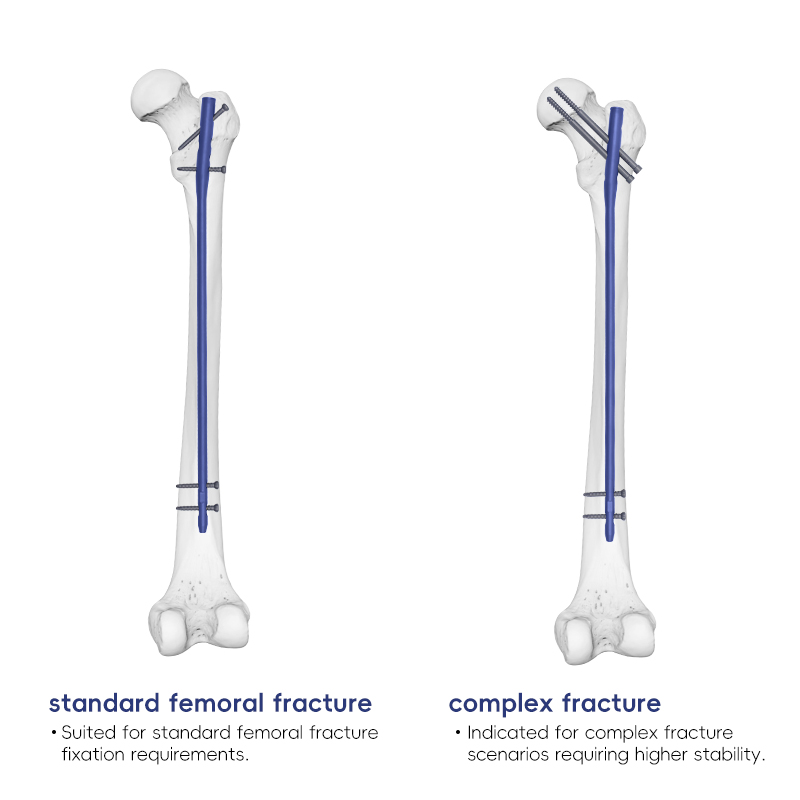

Dual Locking Options

Two locking options for different fractures.

Double Thread Design

Locking screw designed with double lead thread for easier insertion.

Supporting Products

Expert Femoral Intramedullary Nail Instrument Set

Expert Femoral Intramedullary Nail Box

| Video

Case Examples

Case1

View More
Case2

View More

PDF Downlaod

Reference Products

One Stop Solution for Trauma

We offer a wide range of surgical solutions featuring intramedullary nails, locking plates, and trauma plates for various parts of the body. Our product line is designed to cater to the specific needs of patients undergoing procedures for the upper extremities, lower extremities, hand and foot bones, trunk bones, pelvic bones, and pediatric cases, ensuring optimal clinical outcomes with precision and reliability.

Upper Extremities

For complex injuries of the humerus, radius, and ulna, our portfolio includes a variety of intramedullary nails and locking plates to facilitate quick functional recovery.
Lower Extremities

Our solutions for femur, tibia, and fibula injuries include a full range of intramedullary nails and locking plates, addressing diverse surgical requirements.
Hand and Foot Bones

For delicate hand and foot bones, we provide specially designed locking plates and trauma plates to ensure precise fixation and support postoperative recovery.

Trunk Bones

Our advanced intramedullary nails and locking plates are tailored for injuries to the spine and ribs, offering robust support and treatment assurance for trunk bone injuries.
Pelvic Bones

For complex pelvic fractures, our innovative intramedullary nail and locking plate systems are designed to promote rapid healing and functional recovery.
Pediatrics

Tailored for the unique needs of pediatric patients, our specialized intramedullary nails and locking plates ensure safe and effective surgeries, supporting children’s healthy growth and development.
