PFNA Intramedullary Nail Instrument Set 1200-07

Compression-anchoring: Large surface area and tapered core diameter compact cancellous bone during insertion, enhancing fixation strength.
Static/Dynamic Locking: Provide static and dynamic distal locking options for clinical choice.
High Strength: Proximal diameter of 16mm provides enough strength in fixation.
Anti-rotation: Helical blade structure and automatic locking mechanism prevent rotation of the blade and femoral head, improving stability.

Model:
1200-07
Brand:
Grandermed
Material:
Titanium Alloy
Diameter Range:
9 10 11 12mm
Length Range:
180 200 220 240 320 360 380 400 420 440mm
Anatomical Location:
Femur
OEM:
Avaliable
Certificate:
CE | ISO13485
PDF:
Intertan Nail.pdf


Availability:



Inquire

Product Description

Videos

Case Examples

Reference Products

FQA

Product Description

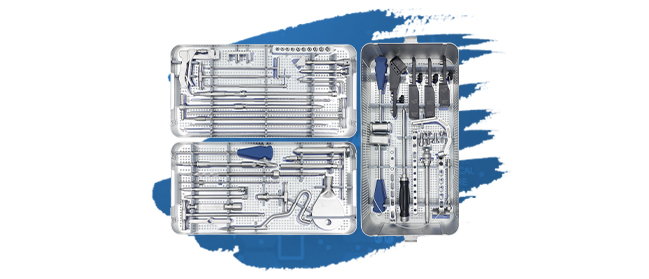

PFNA Intramedullary Nail Instrument Set

The Proximal Femoral Nail Antirotation (PFNA) is indicated for a variety of proximal femoral conditions, including intertrochanteric fractures (simple or comminuted), subtrochanteric fractures, pathological fractures, non-/mal-unions, and osteoporotic fractures in elderly patients. It may also be utilized with augmentation techniques for unstable fractures or cases requiring bone reconstruction.

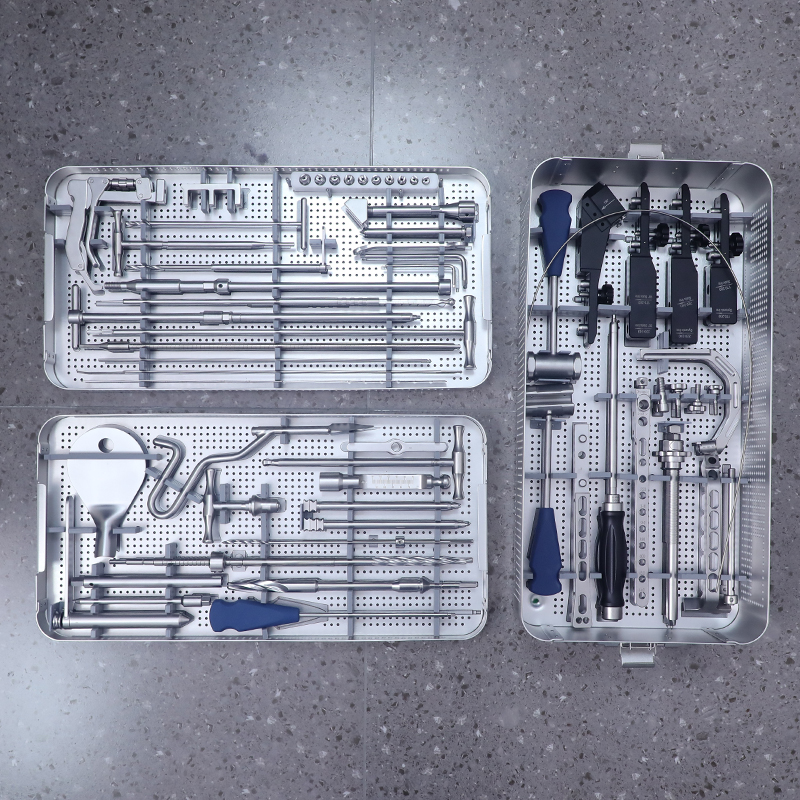

Box 1

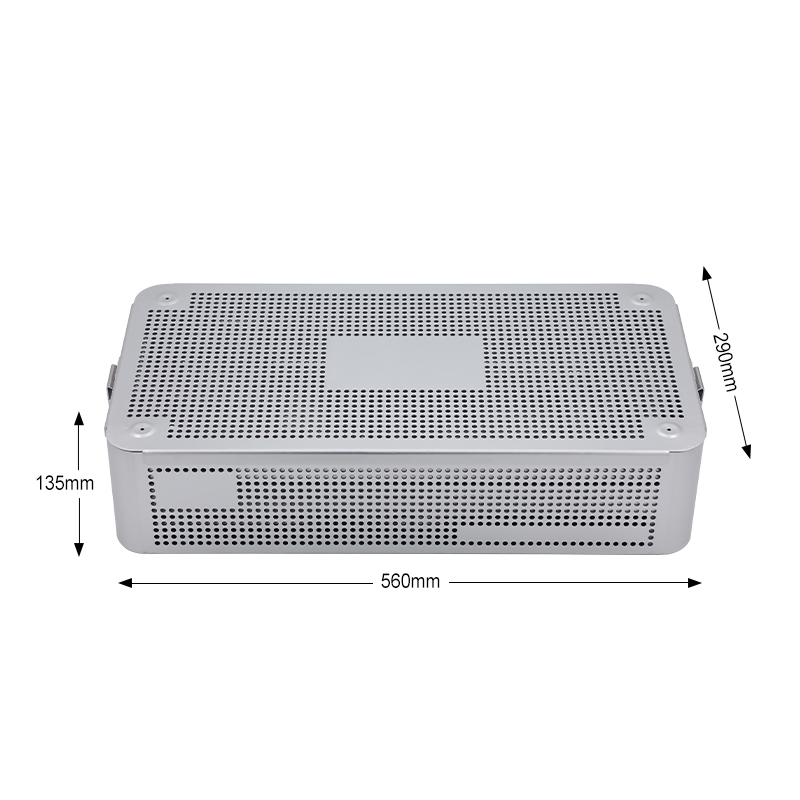

The instrument kit includes a Distal Guider Device (with 180-200°, 90°, and 220/240 specifications), Proximal Guider Device, Hammer, Handle, various bolts (M6/36, M81/31.5, M81/41, M101.5/42.5), Long Nail Distal Guider Bar, Saw Blade Screwdriver, Slide Hammer, Connector, Long Nail Distal Screw Location Device, Guider Sleeve (comprising Blade Screw Sleeve, Drill Sleeve Φ11.2/Φ3.2, and Sleeve Pin), Olive Guide Wire (Ø2.51000, Nitinol Alloy), and Aluminium Box, totaling XX components for medical surgical procedures and auxiliary positioning.

Box 2

The specific instruments are as follows: Screwdriver Hex SW4.0, Proximal Hollow Drill Φ16.5, Proximal Hollow Position Stopper Φ10.6/Φ3.2, Drill Bit Ø4.0*300, Limitator Ø4.0, Drill Sleeve (Out Sleeve + Sleeve + Pin), Locking Screw Sleeve Φ11/Φ8.2, Drill Sleeve Φ8.2/Φ4.0, Sleeve Pin Φ4.0, Depth Gauge 70-120mm, Nut Screwdriver SW8.0, Wrench, Guider Sleeve (Protect Sleeve + Pin Sleeve), Wire Sleeve Φ16.5/Φ3.2, Protect Sleeve Φ16.5×140, Cannulated Screwdriver, Tail Cannulated Screwdriver, Tissue Protection Plate, Quick Coupling T-handle, and AWL.

Box 3

The instrument kit includes a Guider Wire Holder, Distal Position Lock, Position Drill Ø5.2mm, Position Rod, Position Drill Bit Set (containing drill bit, drill sleeve, and drill bit components), Drill Sleeve Ø5.2mm, Position Drill Bit Ø5.2mm×250mm, Nail Removal Rod M10X1.5, Depth Gauge 0-90mm, Blade Screw Device, Reduction Rod, Flexible Reamer Bar, Threaded K-Wire Φ3.2×400mm (3 units), End Cap Guider Φ2.8mm, Template for Development, Reamer Head , Main Pin Impactor, Drill Sleeve Combination (Position Rod Sleeve + Soft Tissue Separator), Position Rod Sleeve Ø8.1/Ø10×120mm, Soft Tissue Separator, Open Wrench SW11.0, Hex Key Large SW5.0, and Hex Key Small SW3.0.

PFNA Intramedullary Nail Instrument Set

Product Hightlights

PFNA Intramedullary Nail Highlights

Compression-anchoring

Large surface area and tapered core diameter compact cancellous bone during insertion, enhancing fixation strength.

Static/Dynamic Locking

Provide static and dynamic distal locking options for clinical choice.

High Strength

Proximal diameter of 16mm provides enough strength in fixation.

Anti-rotation

Helical blade structure and automatic locking mechanism prevent rotation of the blade and femoral head, improving stability.

Supporting Products

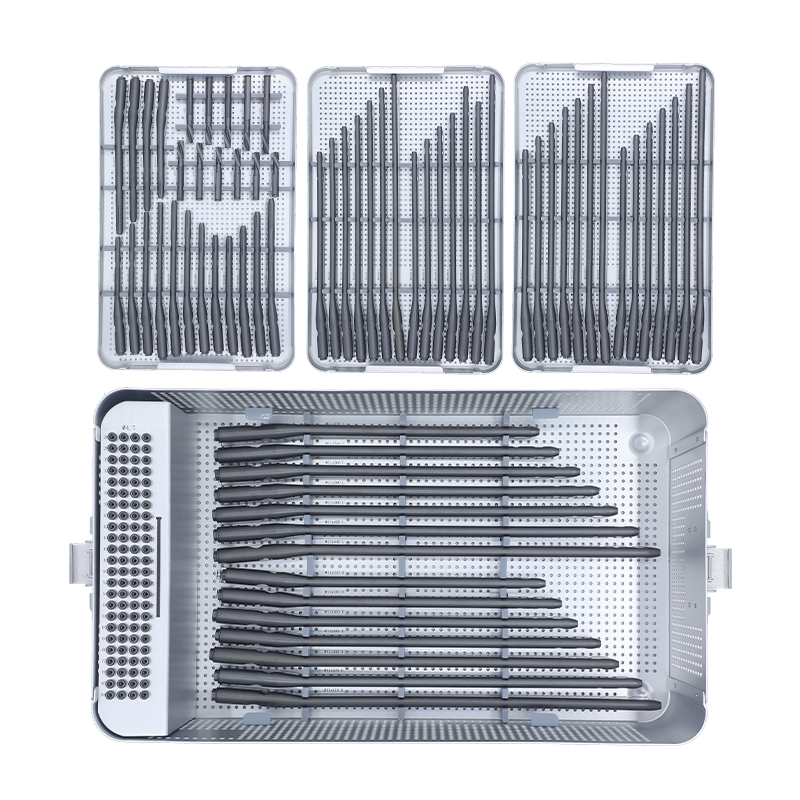

PFNA Intramedullary Nail

PFNA Intramedullary Nail Box

| Video

Case Examples

Case1

View More
Case2

View More

PDF Downlaod
